the GPX loader supports  tracks and waypoints,etc.

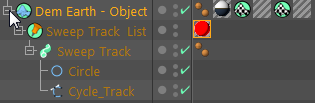

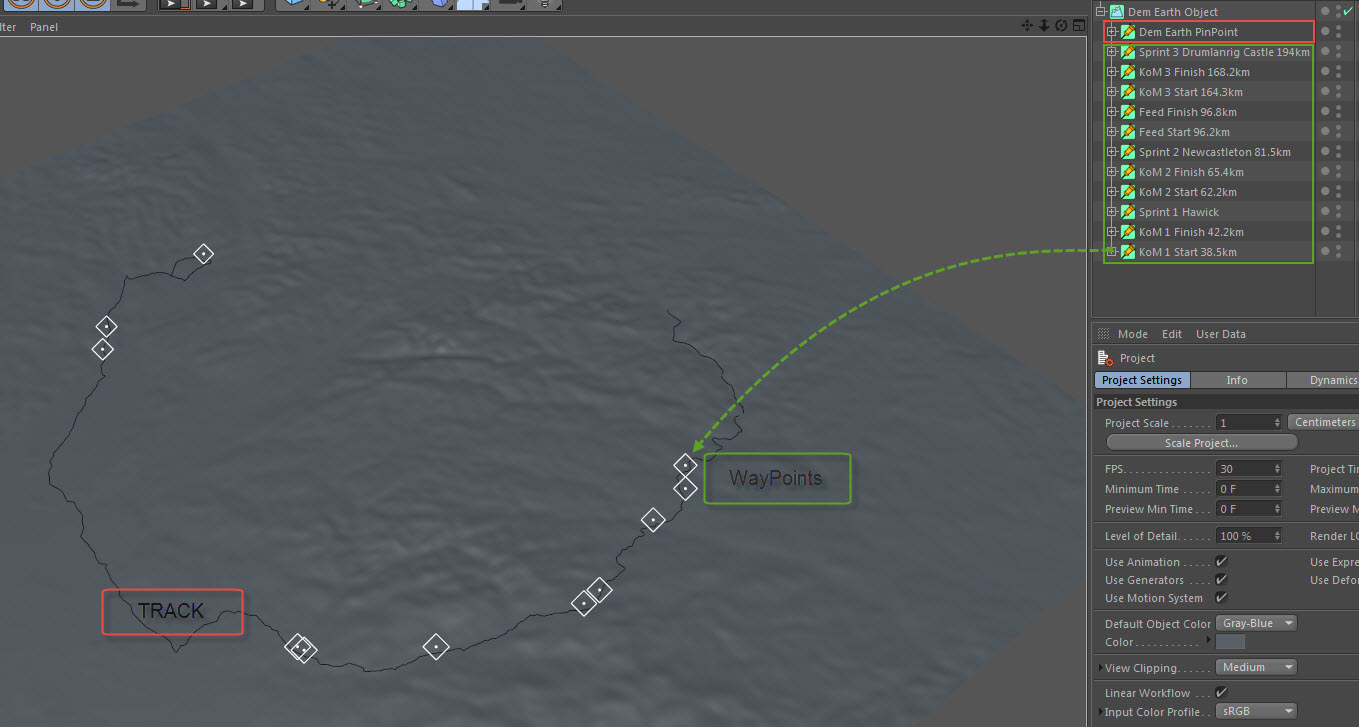

both the track and each individual waypoint are placed under a PinPoint object when imported.The pinpoint ensures that the objects under it stay fixed and relative to the DEM Earth parent , when you zoom and change the geographic location.




Supported Features

up to version 1.56 , waypoints and tracks are supported.

from version 1.60 and beyond, also support routes.





DEM Earth R3 has TrackGraph object, which is very useful combined with GPS tracks,








TIP:

if you need to import a GPX track that only has points in it, and no track, you need to add a dummy track. You can do this with any GIS app, or as follows:


Google Earth Pro + GPS Babel.
Inside Google Earth, open the KML or GPX  file - then choose 'add new path' - draw a simple path anywhere on the map. Draw a boundary around all of your points and save out in Babel, as a GPX with default parameters,  and  drag drop the resulting file, into C4D, to get a landscape,with your points on it, and your dummy track, which you can then delete.
